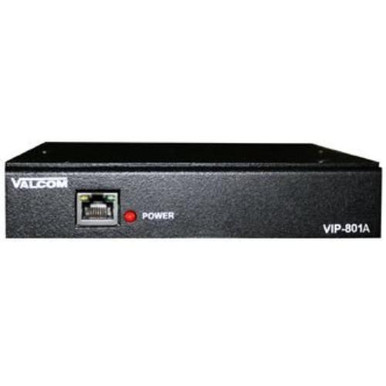

Valcom Network Gateway Module VIP801A

This item is brand-new, factory sealed.

Valcom VIP-801A Enhanced Network Audio Port

• – – Valcom networked page zone extender- Enables voice accessto a single zone of one-way paging over an IP-based LAN/WAN (this allows page zone extension anywhere on the network)- 1 Audio output
• – 1 Audioinput – 2 Programmable form C relay closures – RJ-45 for network connection – No server required – 1 to 11 Digit dial plans – Easy Windows based setup – AUX Audio input
• – Contactclosure available for: audio indication and door unlocking – Protocols DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP – Voice Algorithm: G.711 (64kbits/s)(ulaw) / echo suppression
• – Voltage: 24 Vdc @ 250 mA; IEEE 802.3af compatible, class 3 device; regulatory: FCC Part 15 Class A – Input: analog device interface (600 ohm input impedance, VOX and contact closure input)
• – Output: analog output interface (less than 50 ohms output impedance; frequency response: 200 Hz – 3400 Hz; relay closure available)- Does not include power supply (see VC-VIP-324)

• Product Dimensions: 11 x 9.5 x 4 inches
• Item Weight: 1.65 pounds

– Valcom networked page zone extender- Enables voice accessto a single zone of one-way paging over an IP-based LAN/WAN (this allows page zone extension anywhere on the network)- 1 Audio output- 1 Audioinput- 2 Programmable form C relay closures- RJ-45 for network connection- No server required- 1 to 11 Digit dial plans- Easy Windows based setup- AUX Audio input- Contactclosure available for: audio indication and door unlocking- Protocols DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP- Voice Algorithm: (64kbits/s)(ulaw) / echo suppression- Voltage: 24 Vdc @ 250 mA; IEEE compatible, class 3 device; regulatory: FCC Part 15 Class A- Input: analog device interface (600 ohm input impedance, VOX and contact closure input)- Output: analog output interface (less than 50 ohms output impedance; frequency response: 200 Hz – 3400 Hz; relay closure available)- Does not include power supply (see VC-VIP-324)
